Technical details
Volume 85 m3
Loading capacity: 57,5 t
Tare of wagon: 22,5 ton
Axle number: 4
Maximum speed empty: 120 km/h
Maximum speed loaded:.100 km/h
Minimum curve-radius: 60 m

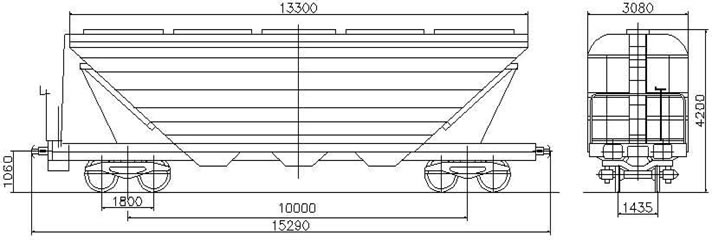

Uagpps
4 axle cereals wagon
The wagon is planed for hygroscopic freights (grain, chemicals).
The freight is loaded trough 5 openings on the roof (500mm*220mm).
The freight is unloaded trough 3*2 openings on the floor(355mm*650mm),
closed with flaps.
